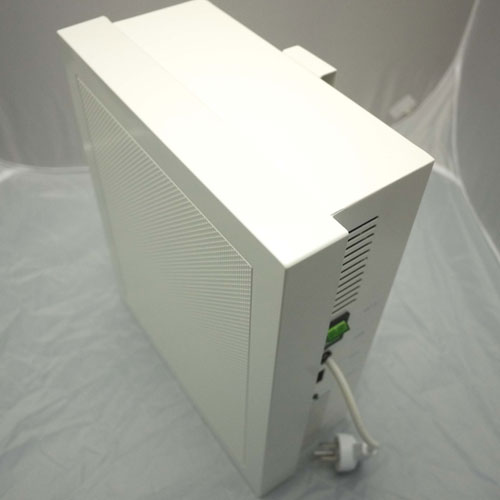

High power jammers is equipped high quality silent fan with low noise in working state so that it will not affect the examination. The special mold shell is adopted to configure the new super large aluminum alloy radiator and the fan to form an efficient intelligent cooling heat radiation system and the performance is stable, safe and reliable. It can block all the common signal types. Jamming frequency range of the extensive: 100MHz - 2700MHz full coverage, jam all the phone frequencies include (CDMA, GSM, DCS, PHS, TDS, CDMA, CDMA 2000, WCDMA,4G) , radio, 2.4G(WLAN, WIFI, Bluetooth), wireless network camera and other wireless copying tool signal probe. The jamming radius reach up 100 meters.
Outstanding Advantages:
The special model of the full-frequency college entrance examination designated by the National Education Department;
Can effectively interfere with various tools (including 4G);
The most extensive frequency range: 100MHZ-2700MHZ full coverage;
The machine's effective power reaches the highest: low frequency 100-800MHZ single output reaches 8-10W, high frequency 800-2700MHZ single output power reaches 5-8W.
Features:
Large jamming radius and wide frequency
Low operating noise
Intelligent cooling system, good heat dissipation
Jamming Frequencies:
- CDMA: 869 - 894MHz
- GSM: 925 - 960MHz
- PCS: 1930 - 1990MHz
- TD-SCDMA: 2005 - 2030MHz
- WCDMA / CDMA2000: 2110 - 2150MHz
- WIFI: 2400 - 2500MHz
- VHF: 110 - 400MHz / 500 - 790MHz
- UHF: 400 - 470MHz
Other Parameters:
Totoal power: 10 Watt
Jamming radius: up to 100 meters （jamming radius may be affected by environmental factors）
Power supply: AC 220V / DC 24V/10A
Temperature: -10 - 55℃
Relative humidity: ≤ 90%
Atmospheric pressure: 86-106kPa
Transmit power per path: 5W ± 200mA
Weight: 5.5kg
Dimensions: 275 × 188 × 323 mm
Application places: Schools, prisons, courts, churches, gas stations, conference rooms, governments, research secrecy units,ect.
