The desktop high power jammer has superior interference frequency type and jamming range with total output power of 15W, it designed to eliminate all telephone communications. It allows you to block both CDMA GSM DCS PHS 3G 4G WiFi networks.
It uses two fans and a cooling system with an integrated copper sink to ensure long working hours and stable performance, making it one of the most popular desktop mobile phone jammers today. It is suitable for larger places, including conference rooms, schools, prisons, gas stations, examination halls, etc. The maximum interference radius can reach 40 meters. Within this range, all mobile phones will not be able to communicate properly.
Why to choose Desk Signal Jammer TG-101A6?
- Besides the indoor installation, this device can be installed in different cars and buses. It is with the car charge adaptor and can be powered with 12V
- Its power adaptor can be supplied with both AC 110-240V and DC12-36V. If Working under AC current, It will be better for the capabilities of the device without too much current, in case of the damage of the machine.
- With high heat dissipation technique and designed with two fans to keep the heat dissipated, the device can work for a long time without so much heat and always in a good working status.
- The device is designed with aluminum module case, which is not easy to be wore and tore by adopting electro oxidation technology. Moreover, the black color case makes the device more elegant.
- Separate channels control and power adjustment by knob. Highly user friendly.
Jamming Frequencies:
- WIFI 2.4G : 2400 - 2500MHz
- CDMA : 851 - 894MHz
- GSM : 1920 - 1990MHz
- PHS : 1880 - 1930MHz
- DCS : 1805 - 1990MHz
- 3G : 2110 - 2170MHz
- 4G : 725 - 775MHz / 2300 - 2400MHz
Other Parameters:
Total power: 15W
Power supply: AC 110 - 240V / DC 12V
Charging mode: AC adapter
Weight: 1750g
Dimensions: 320 x 115 x 55mm
Warranty: 1 year
Jamming radius: up 40m (Jamming radius depending on the area signal strength)

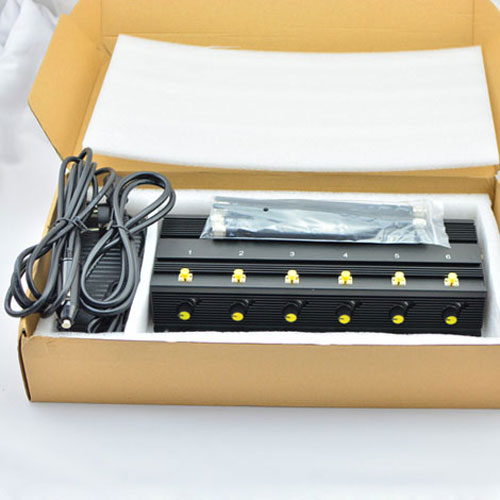

Packing List:
1 * Desktop wifi phone jammer
1 * AC charger
6 * Antennas
Notes:
1) While it is working, the surface temperature is about 45 ℃. It is normal. However, if it is higher than 45 ℃, it is abnormal. Please put the power SW to OFF immediately and try to contact your local distributor or agent.
2) The shielding range of the device will be determined by the local signal strength. In different situation, it will be with different performance.
3) Please try to put the device in a higher position while it is working .It will be better. The suggested height is about 2M. To avoid the loss of function of the device, please try to avoid the device placed on or the metal materials.
4) Do not put the device near computers, notebook computers, televisions, stereos, radios and so on , in order not to make some interference for these equipments.
5) Do not turn on the power before the antennas is installed, If the antenna is not properly installed in accordance with the manuals, the shielding range will be not so good. Make sure the correct installation before turn on the power.
